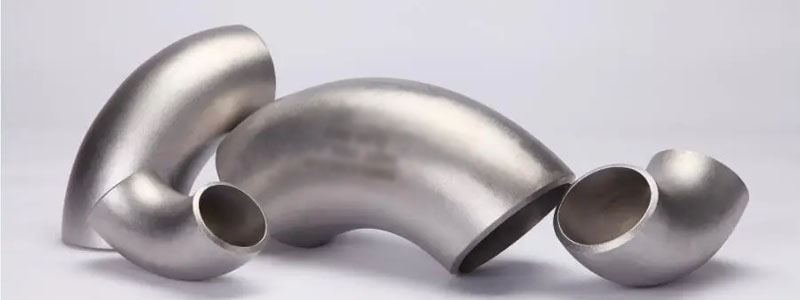

Stainless Steel Elbow Fittings
Stainless Steel Elbow Fitting Manufacturer in India
Stainless Steel Elbow Fittings Manufacturers & Suppliers in India Bhadra Engimech is a leading Stainless Steel Elbow Fittings Manufacturer in India . We produce some of the finest quality SS Elbow Fittings used by various industries globally. Our fittings come in different sizes, dimensions, and shapes and can be customized to meet customer requirements. As a top Stainless Steel Elbow Fitting Manufacturer, our products are extensively used in sectors such as Textile, Pharmaceutical, Oil and gas, and Fluid . Our fittings are known for their exceptional quality, durability, and reliability, making them a preferred choice for many industries. Leading Stainless Steel Elbow Fittings Manufacturers in India – Description Bhadra Engimech is the most trusted Stainless Steel Elbow Fittings Supplier in India . We also manufacture other types of SS Pipe Fittings, such as Lap Joints, End Caps, Nipples, Couplings, Bends, Reducers, Cross Tees, and more. As a trusted Stainless Steel Elbow Fitting Supplier, we supply high-quality products worldwide. We are Top Stainless Steel Tee Fittings Manufacturer in India .
Technical Specifications
| Specification | Details |
|---|---|
| Stainless Steel Grades | 304 ,316, 321, 317L, 310 , 347 , 904L |
| Size Range | 1/8” NB – 48” NB |
| Schedules | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, XXS,100, 120, 140, 160 |
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Type | Welded , seamless, fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
Available Types & Variations
Stainless Steel Elbow 90 Degree
Used to change flow direction by 90 degrees. Widely used in steam, gas, and liquid pipelines.
Stainless Steel Elbow 45 Degree
Used to divert pipeline pathways by 45 degrees, minimizing pressure drop and line turbulence.
Stainless Steel Long Radius Elbow
Center-to-face distance is 1.5 times the nominal size, reducing friction drag and pressure drops.
Stainless Steel Short Radius Elbow
Center-to-face distance is equal to the nominal size, ideal for tight and compact spaces.
Application and Uses
- Used in Textile machinery
- Used in the Oil and gas industry
- Used in Medical Gas Pipeline Systems
- Used in the Pharmaceutical Processing Industry
- Used in Fluid Piping.
- Used in Modern Architecture.
Stainless Steel Elbow Fittings Chemical Composition
| ASTM A403 Grade | Maximum (C) | Maximum (Mn) | Maximum (P) | Maximum (S) | Maximum (Si) | Cr | Ni | Mo | Maximum (Nitrogen) | Cu/ Others |
|---|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel 304 Elbow Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
| Stainless Steel 304L Elbow Fittings | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 12.00 | – | 0.10 | – |
| Stainless Steel 316 Elbow Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| Stainless Steel 316L Elbow Fittings | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| Stainless Steel 347H Elbow Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 13.00 | – | – | Cb= 10x ( C Min ) or 1.00 Max |
| Stainless Steel 410 Elbow Fittings | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
Stainless Steel Elbow Fittings Mechanical Composition
| Material Grade | Number (UNS) | Tensile Properties (KSI) (minimum) | Yield Properties (KSI) (minimum) | Elongation Property (minimum) | Hardlines Properties (Brinell) (maximum) | Hardness Properties (Rockwell B) (maximum) |
|---|---|---|---|---|---|---|
| Stainless Steel 304 Elbow Fittings | S30400 | 75 | 30 | 40% in 2″ | 183 | 88 |
| Stainless Steel 304l Elbow Fittings | S30403 | 70 | 30 | 40% in 2″ | 183 | 88 |
| Stainless Steel 316 Elbow Fittings | S31600 | 75 | 30 | 40% in 2″ | 217 | 95 |
| Stainless Steel 316L Elbow Fittings | S31603 | 70 | 25 | 35% in 2″ | 217 | 95 |
