Forged Caps Fittings Manufacturer, Supplier & Stockist in India

Bhadra Engimech is a top-tier Forged Caps Fittings Manufacturer in India. We supply and export Forged Caps Fittings in various sizes, shapes, and specifications to meet the unique needs of our customers. Forged caps are used to seal the end of a pipeline. They are placed over the end of the pipe and welded or threaded onto it.

Forged caps are manufactured in accordance with international standards. Conforming to ASME B16.11, BS3799, they provide excellent seal integrity, strength, and resistance to corrosion, suitable for high-pressure industrial plumbing applications.

Technical Specifications

Forged Caps Fittings Specifications

Forged Caps Fittings	Specifications
Size:	1/4″ to 4″
Standard:	ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Type:	Threaded – SCREWED (SCRD) – NPT, BSP, BSPT
Class:	2000LBS, 3000LBS, 6000LBS
Grades
Stainless Steel	ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Super Duplex Steel	S32750
Duplex Steel	ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon Steel	ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
Alloys Steel	ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Nickel Alloys	Nickel Alloys 200, Nickel Alloys 201
Titanium	Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Hastelloy	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Molybdenum	ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum
Cobalt	Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21
Niobium	ASTM B394, R04200 R04210
Nimonic	Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc
Tungsten	W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten
Nichrome	Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc
Magnesium	Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.
Tantalum	Tantalum – Grade 1.
Monel	Monel 400, Monel k500
MU-METAL	MU-METAL
Zirconium	Zirconium 702, Zirconium 705, Zirconium 705, Zirconium-2, Zirconium-4
Beryllium Copper	Alloy 25 UNSC17200
Aluminium	1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175
Copper Alloys	C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000

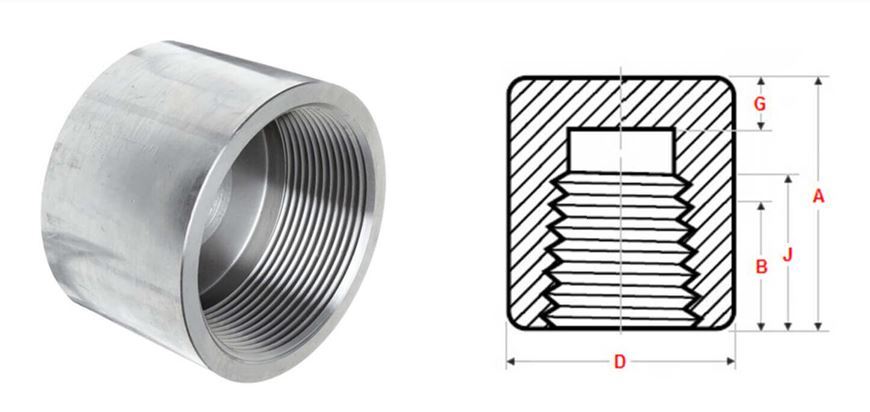

Forged Caps Fittings Dimension Chart

NPS	End to End	Outside Diameter	Minimum End Wall Thickness	Min Length of Thread
NPS	A	D	G	B	J
1/2	32	28	6.4	10.9	13.6
3/4	37	35.	6.4	12.7	13.9
1	41	44	9.7	14.7	17.3
1.1/4	44	57	9.7	17	18
1.1/2	44	64	11.2	17.8	18.4
2	48	76	12.7	19	19.2
2.1/2	60	92	15.7	23.6	28.9
3	65	108	19	25.9	30.5
4	68	140	22.4	27.7	33

Forged Caps Fittings Application and Uses

Caps Fittings Uses in Textile machinery
Caps Fittings Uses in Oil and gas industry
Caps Fittings Uses in Medical Gas Pipeline Systems
Caps Fittings Uses in Pharmaceutical processing industry
Caps Fittings Uses in Fluid piping.
Caps Fittings Uses in Modern architecture.
Caps Fittings Uses in Water waste projects.
