Bhadra Engimech is one of the topmost Hastelloy C276 Pipe Fittings Manufacturers in India. Grade C276 wrought nickel alloy buttweld fittings are highly corrosion resistant in severe acid environments, wet chlorine gas, and organic solvents.
Technical Specifications
Hastelloy C276 Pipe Fittings Specification
| C276 Pipe Fittings Specifications |
ASTM B366/ ASME SB366 |
| C276 Hastelloy Alloy Pipe Fittings size |
C276 Seamless Pipe Fittings : 1/2″ – 10″
C276 Welded Pipe Fittings: 1/2″ – 48″ |
| Alloy C276 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Hastelloy C276 Pipe Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| C276 Pipe FittingsType |
DN15-DN1200 |
| ASTM B366 C276 Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade C276 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 C276 Pipe Fitting |
| ASTM B366 C276 Pipe Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| C276 Hastelloy Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third-Party Inspection Report, etc |
| SA 366 C276 Pipe Fittings Origin & Mills |
Indian, Oman, Kuwait, UAE |
| Specialized manufacturer of |
Alloy UNS N10276, N10276 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |

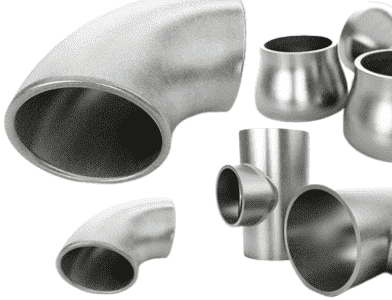

Hastelloy C276 Pipe Fitting Types
Hastelloy C276 Pipe Fittings Equivalent Standards
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
OR |
| Hastelloy C276 |
2.4819 |
N10276 |
NW 0276 |
ХН65МВУ |
NiMo16Cr15W |
ЭП760 |
Mechanical & Physical Properties of Hastelloy C276 Pipe Fittings
| Grade |
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| C276 |
8.89 g/cm3 |
1370 °C (2500 °F) |
Psi – 52,000 , MPa – 355 |
Psi – 1,15,000 , MPa – 790 |
40 % |
Application And Uses
- Hastelloy C276 Pipe Fittings used in Chemicals Industry
- Hastelloy C276 Pipe Fittings used in Heavy oil refineries.
- Hastelloy C276 Pipe Fittings used in Textile Machinery.
- Hastelloy C276 Pipe Fittings used in Plumbing.
- Hastelloy C276 Pipe Fittings used in Nuclear power (mostly seamless).
- Hastelloy C276 Pipe Fittings used in Petrochemicals and acids.
- Hastelloy C276 Pipe Fittings used in Pulp and Paper Industry
