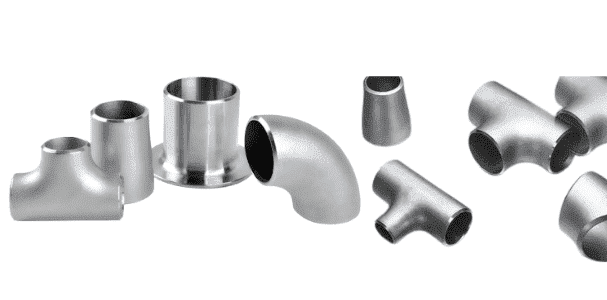

Bhadra Engimech is a premier Monel K500 Pipe Fittings Manufacturer in India. Combining the excellent corrosion protection of Monel 400 with the added benefits of titanium and aluminum precipitation hardening, K500 provides high yield properties.
Technical Specifications
Monel K500 Pipe Fittings Specification
| Specifications : |
ASTM B366 / ASME SB366 |
| Dimensions : |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size : |
Seamless Pipe Fittings: 1/2″ – 10″, Welded Pipe Fittings: 1/2″ – 48″ |
| Type : |
Seamless / Welded / Fabricated |
| Bending Radius : |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Fittings Origin: |
Indian, Oman, Kuwait, UAE |
| Thickness : |
5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Monel K500 Pipe Fitting Types
Mechanical & Physical Properties of Monel K500 Pipe Fittings
| Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| 8.44 g/cm3 |
1350 °C (2460 °F) |
Psi – 1,15,000 , MPa – 790 |
Psi – 1,60,000 , MPa – 1100 |
20 % |
Class 300 Monel K500 Pipe Fittings Dimensions & Weight Chart
| ANSI b16.9 Pipe Fittings
NPS |
ASME b16 9 Pipe Fittings O
D Y |
Wall Thick. T
(Pipe Elbow Sch.) |
45 Degree LR Elbow Centre to Face B |
45 Deg SR Elbow
Weight |
90 Deg LR Elbow Centre to Face A |
90 Deg LR Elbow Weight In Below |
90 Deg SR Elbow Centre to Face A |
90 Deg SR Elbow Weight In Below |
| millimeter |
inch. |
millimeter |
millimeter |
Sch. |
millimeter |
kilogram |
millimeter |
kilogram |
millimeter |
kilogram |
| 15 |
1/2” |
21.3 |
2.78 |
STD |
15.9 |
0.04 |
38.1 |
0.08 |
– |
– |
|
|
|
3.73 |
X.S |
15.9 |
0.05 |
38.1 |
0.10 |
– |
– |
| 20 |
3/4” |
26.7 |
2.87 |
STD |
11.1 |
0.04 |
28.6 |
0.08 |
– |
– |
|
|
|
3.91 |
X.S |
11.1 |
0.05 |
28.6 |
0.11 |
– |
– |
| 25 |
1” |
33.4 |
3.38 |
STD |
22.2 |
0.09 |
38.1 |
0.15 |
25.4 |
0.11 |
|
|
|
4.55 |
X.S |
22.2 |
0.11 |
38.1 |
0.19 |
25.4 |
0.14 |
| 32 |
11/4” |
42.2 |
3.56 |
STD |
25.4 |
0.14 |
47.6 |
0.28 |
31.75 |
0.18 |
|
|
|
4.85 |
X.S |
25.4 |
0.2 |
47.6 |
0.39 |
31.75 |
0.24 |
| 40 |
11/2” |
48.3 |
3.68 |
STD |
28.6 |
0.2 |
57.1 |
0.4 |
38.1 |
0.26 |
|
|
|
5.08 |
X.S |
28.6 |
0.25 |
57.1 |
0.5 |
38.1 |
0.35 |
| 50 |
2” |
60.3 |
3.91 |
STD |
34.9 |
0.36 |
76.2 |
0.72 |
50.8 |
0.5 |
|
|
|
5.54 |
X.S |
34.9 |
0.5 |
76.2 |
1.0 |
50.8 |
0.68 |
| 65 |
21/2” |
73.0 |
5.16 |
STD |
44.4 |
0.73 |
95.2 |
1.46 |
63.5 |
0.95 |
|
|
|
7.01 |
X.S |
44.4 |
0.91 |
95.2 |
1.82 |
63.5 |
1.27 |
| 80 |
3” |
88.9 |
5.49 |
STD |
50.8 |
1.1 |
114.3 |
2.18 |
76.2 |
1.45 |
|
|
|
7.62 |
X.S |
50.8 |
1.45 |
114.3 |
2.86 |
76.2 |
1.95 |
| 100 |
4” |
114.3 |
6.02 |
STD |
63.5 |
2.1 |
152.4 |
4.2 |
101.6 |
2.8 |
|
|
|
8.56 |
X.S |
63.5 |
2.9 |
152.4 |
5.7 |
101.6 |
3.9 |
| 125 |
5” |
141.3 |
6.65 |
STD |
79.4 |
3.4 |
190.0 |
6.8 |
127.0 |
4.8 |
|
|
|
9.5 |
X.S |
79.4 |
5.0 |
190.0 |
10.0 |
127.0 |
6.5 |
| 150 |
6” |
168.3 |
7.11 |
STD |
95.2 |
5.1 |
229.0 |
10.1 |
152.4 |
6.8 |
|
|
|
10.97 |
X.S |
95.2 |
7.7 |
229.0 |
15.3 |
152.4 |
10.2 |
| 200 |
8” |
219.1 |
8.18 |
STD |
127.0 |
10.2 |
305.0 |
20.4 |
203.0 |
13.6 |
|
|
|
12.7 |
X.S |
127.0 |
15.5 |
305.0 |
30.9 |
203.0 |
20.9 |
| 250 |
10” |
273.9 |
9.27 |
STD |
159.0 |
18.1 |
381.0 |
36.1 |
254.0 |
24.1 |
|
|
|
12.7 |
X.S |
159.0 |
24.4 |
381.0 |
48.8 |
254.0 |
32.5 |
| 300 |
12” |
323.9 |
9.52 |
STD |
190.0 |
26.6 |
457.0 |
53.1 |
305.0 |
35.4 |
|
|
|
12.7 |
X.S |
190.0 |
35.0 |
457.0 |
70.0 |
305.0 |
46.7 |
| 350 |
14” |
355.6 |
9.52 |
STD |
222.0 |
34.1 |
533.0 |
68.1 |
356.0 |
45.4 |
|
|
|
12.7 |
X.S |
222.0 |
45.0 |
533.0 |
90.0 |
356.0 |
60.0 |
| 400 |
16” |
406.4 |
9.52 |
STD |
254.0 |
45.0 |
610.0 |
89.3 |
406.0 |
59.5 |
|
|
|
12.7 |
X.S |
254.0 |
59.0 |
610.0 |
118.0 |
406.0 |
78.7 |
| 450 |
18” |
457.0 |
9.52 |
STD |
286.0 |
56.5 |
686.0 |
113.0 |
457.0 |
75.6 |
|
|
|
12.7 |
X.S |
286.0 |
75.0 |
686.0 |
150.0 |
457.0 |
100.0 |
| 500 |
20” |
508.0 |
9.52 |
STD |
318.0 |
85.0 |
762.0 |
140.0 |
508.0 |
93.5 |
|
|
|
12.7 |
X.S |
318.0 |
112.5 |
762.0 |
186.0 |
508.0 |
124.0 |
| 600 |
24” |
610.00 |
9.52 |
STD |
381.0 |
101.5 |
914.0 |
203.0 |
610.0 |
135.0 |
|
|
|
12.7 |
X.S |
381.0 |
134.5 |
914.0 |
269.0 |
610.0 |
179.0 |
| Pipe Fittings Manufacturer In India |
Application And Uses
- ASTM B366 Monel K500 Pipe Fittings used in Chemicals Industry
- ASTM B366 Monel K500 Pipe Fittings used in Heavy oil refineries.
- ASTM B366 Monel K500 Pipe Fittings used in Textile Machinery.
- ASTM B366 Monel K500 Pipe Fittings used in Plumbing.
- ASTM B366 Monel K500 Pipe Fittings used in Nuclear power (mostly seamless).
- ASTM B366 Monel K500 Pipe Fittings used in Petrochemicals and acids.
- ASTM B366 Monel K500 Pipe Fittings used in Pulp and Paper Industry
