Bhadra Engimech is a leading Incoloy 825 Pipe Fittings Manufacturer in India. These fittings offer excellent resistance to both oxidizing and reducing acids, including sulfuric and phosphoric acids.
Technical Specifications
Incoloy 825 Pipe Fittings Specification
| Incoloy 825 Pipe Fittings Specifications |
ASTM B366/ ASME SB366 |
| 825 Incoloy Alloy Pipe Fittings size |
825 Seamless Fittings: 1/2″ – 10″
825 Pipe Fittings: 1/2″ – 48″ |
| Alloy 825 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Incoloy 825 Pipe Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 825 pipe Pipe FittingsType |
DN15-DN1200 |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade 825 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, the 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 825 Pipe Fitting |
| 825 Incoloy pipe Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third-Party Inspection Report, etc |
| SA 366 825 Pipe Fittings Origin |
Indian, Oman, Kuwait, UAE |
| Specialized manufacturer of |
Alloy UNS N08825, N08825 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |

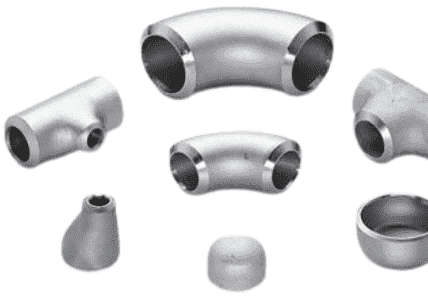

Incoloy 825 Pipe Fitting Types
Chemical Composition of Incoloy 825 Pipe Fittings
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 825 |
8.14 g/cm3 |
1400 °C (2550 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 32,000 , MPa – 220 |
30 % |
Application And Uses
- ASTM B366 Incoloy 825 Pipe Fittings used in Chemicals Industry
- ASTM B366 Incoloy 825 Pipe Fittings used in Heavy oil refineries.
- ASTM B366 Incoloy 825 Pipe Fittings used in Textile Machinery.
- ASTM B366 Incoloy 825 Pipe Fittings used in Plumbing.
- ASTM B366 Incoloy 825 Pipe Fittings used in Nuclear power (mostly seamless).
- ASTM B366 Incoloy 825 Pipe Fittings used in Petrochemicals and acids.
- ASTM B366 Incoloy 825 Pipe Fittings used in Pulp and Paper Industry
