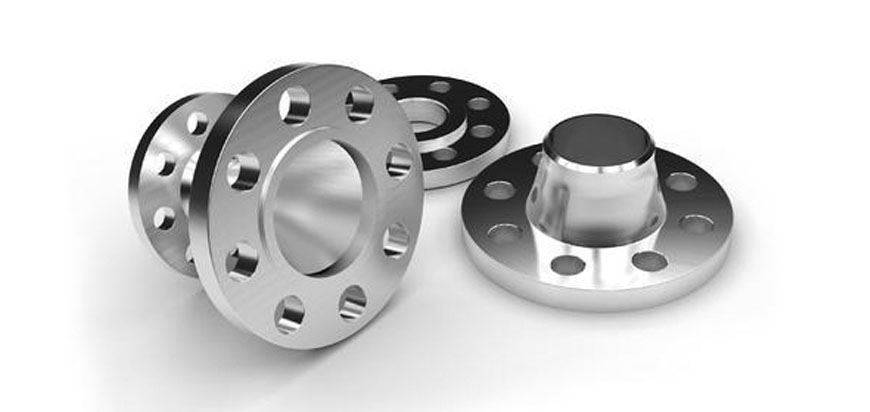

Companion Flanges
Companion Flanges Manufacturer, Supplier & Stockist in India
Bhadra Engimech is one of the most leading Companion Flanges Manufacturer in Mumbai, India. ASTM A182 Companion Flanges Pipe Flanges products are designed and developed in accordance with international quality standards. One of our popular products in the Metal Market is Companion Flanges. We are an ISO 9001:2015 certified company with a global reach. We are offering market-leading prices on ASME B 16.5 to all our customers, with a stock of standard, grades, sizes, and types available for immediate delivery worldwide.
We are the world’s topmost Companion Flanges Manufacturer in Mumbai, India. The performance and Dependability of Bhadra Engimech has made us the leading Stockholder, Manufacturer, Supplier, Importer, and Exporter in India. MSS SP44 products are mainly designed to control and help the flow of liquids, gases, or other materials. We offer different types of flanges such as Lap joint Flanges, Orifice Flanges and many more.
Companion Flanges Specification
| Specifications | Details |
|---|---|
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6, 10, 16, 25, 40, 64, 100, 160 ETC. available with NACE MR 01-75 |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | S32750 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum |
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 |
| Niobium | ASTM B394, R04200 R04210 |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten |
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc |
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. |
| Tantalum | Tantalum – Grade 1. |
| Monel | Monel 400, Monel k500 |
| MU-METAL | MU-METAL |
| Zirconium | Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4 |
| Beryllium Copper | Alloy 25 UNSC17200 |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 |
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 |
Companion Flanges Dimension Chart
| Flange | A | mm | 90 | 100 | 120 | 150 | 180-8 | 180-10 | 225 | 250 | 285 | 315 | 350 | 390 | 435 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bolt Circle | B | mm | 74.5 | 84 | 101.5 | 130 | 155.5 | 155.5 | 196 | 218 | 245 | 280 | 310 | 345 | 385 |
| Pilot | C | mm | 47 | 57 | 75 | 90 | 110 | 110 | 140 | 140 | 175 | 175 | 220 | 250 | 280 |
| Pilot Height | D | mm | 2.2 | 2.2 | 2.2 | 2.5 | 2.7 | 2.7 | 4.0 | 5.0 | 6.0 | 6.0 | 7.0 | 7.0 | 9.0 |
| Hardware | - | mm | M8 | M8 | M10 | M12 | M14 | M16 | M16 | M18 | M20 | M22 | M22 | M24 | M27 |
| # Bolts | - | - | 4 | 6 | 8 | 8 | 8 | 10 | 8 | 8 | 8 | 8 | 10 | 10 | 10 |
About Companion Flanges
Companion Flanges products are used for associating and connecting pipes, pumps, valves, and much other equipment to create a piping system below the size of 2 or 4 inches in diameter. The Flange is used to close a pipeline in many industries. A Stainless Steel Companion Flanges is an internal and external, or rim, for strength, as the Companion Flanges of an iron beam such as an I-beam or a T-beam or a g-beam; or for attachment to another object, as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera or for a flange of a rail car or tram wheel. Thus Companion flanged wheels are wheels with a Companion flange on one side to keep the wheels from running off the rails.
Companion Flanges Application and Uses
- Companion Flanges Uses in Textile machinery
- Companion Flanges Uses in Oil and gas industry
- Companion Flanges Uses in Medical Gas Pipeline Systems
- Companion Flanges Uses in Pharmaceutical processing industry
- Companion Flanges Uses in Fluid piping.
- Companion Flanges Uses in Modern architecture.
- Companion Flanges Uses in Water waste projects.
