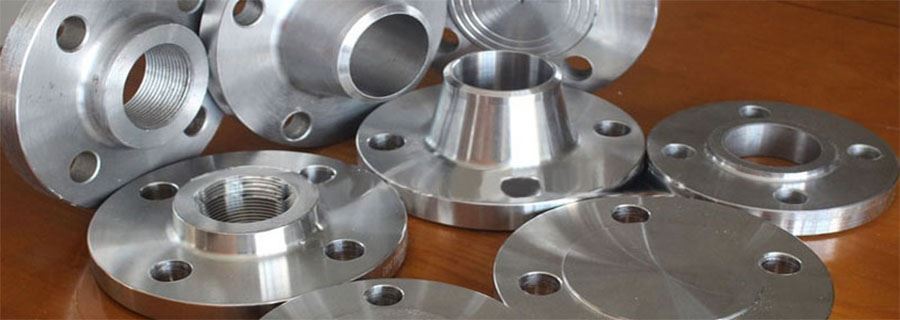

Bhadra Engimech is a leading manufacturer, stockist, and exporter of high-strength Nickel Alloys Flanges in India. These flanges provide outstanding resistance to stress corrosion cracking, high temperature scaling, and localized pitting.
Technical Specifications
Nickel Alloys Flanges Specification
| Specifications |
Nickel Alloy Flanges |
| Nickel Alloy Flanges Standards |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASME B16.5 Nickel Alloy Flange size range |
1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Main Types |
Forged / Threaded / Screwed / Plate |
| Flange supporting material |
Gasket, Ring Joint, Flange Bolts |
| Connect Type/ Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Nickel Alloy Pipe Flanges Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third-Party Inspection Report, etc |
| Production technique |
Forged, Heat treated and machined |
| Test |
A hydrostatic testing machine, direct-reading Spectrograph,UI transonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment |
Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
Nickel Alloys Flange Types
Nickel Alloys Slip-on Flange
Nickel Alloys Threaded Flanges
Nickel Alloys Lap Joint Flange
Nickel Alloys Blind Flange
Nickel Alloys Socket Weld Flange
Nickel Alloys Weld Neck Flange
Nickel Alloys Long Weld Neck Flange
Nickel Alloys Companion Flange
Nickel Alloys Orifice Flange
Nickel Alloys Flanges Equivalent Standards
| Standard |
Werkstoff Nr. |
UNS |
JIS |
AFNOR |
BS |
GOST |
EN |
| Nickel 200 |
2.4066 |
N02200 |
NW 2200 |
N-100M |
NA 11 |
НП-2 |
Ni 99.2 |
| Nickel 201 |
2.4068 |
N02201 |
NW 2201 |
– |
NA 12 |
НП-2 |
LC-Ni 99 |
Chemical Composition of Nickel Alloys Flanges
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Nickel 200 / 201 |
8.9 g/cm3 |
1446 °C (2635 °F) |
Psi – 67000, MPa – 462 |
Psi – 21500, MPa – 148 |
45 % |
ASME B16.5 300 LB Flanges Dimensions & Weight Chart
| Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
| AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
| AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
| Table D Flanges |
95 |
67 |
4 |
13 |
14 |
| Table E Flanges |
95 |
67 |
4 |
13 |
14 |
| Table F Flanges |
95 |
67 |
4 |
13 |
14 |
| Table H Flanges |
114 |
83 |
4 |
16 |
17 |
| Table J Flanges |
114 |
83 |
4 |
16 |
17 |
| ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
| ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
| ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
| ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
| ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
| ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
| PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
| PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
| PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
| PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
| PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Nickel Alloys Flanges Drilling Chart
| Nominal Size |
Outside Diameter
(OD) |
Min. Thickness
(T) |
RF Dia.
(R) |
No. of Bolt Holes |
Diameter of Holes |
Bolt Circle
(BC) |
SO Bore ID
(SB) |
WN Bore ID
(WB) |
Dia. Hub Base
(HB) |
Dia. of Hub Top
(HT) |
SO LTH
(SL) |
WN LTH
(WL) |
| 1⁄2 |
3.50 |
0.38 |
1.38 |
4 |
0.62 |
2.38 |
0.88 |
0.62 |
1.19 |
0.84 |
0.56 |
1.81 |
| 3⁄4 |
3.88 |
0.44 |
1.69 |
4 |
0.62 |
2.75 |
1.09 |
0.82 |
1.50 |
1.05 |
0.56 |
2.00 |
| 1 |
4.25 |
0.50 |
2.00 |
4 |
0.62 |
3.12 |
1.36 |
1.05 |
1.94 |
1.32 |
0.62 |
2.12 |
| 11⁄4 |
4.62 |
0.56 |
2.50 |
4 |
0.62 |
3.50 |
1.70 |
1.38 |
2.31 |
1.66 |
0.75 |
2.19 |
| 11⁄2 |
5.00 |
0.62 |
2.88 |
4 |
0.62 |
3.88 |
1.95 |
1.61 |
2.56 |
1.90 |
0.81 |
2.38 |
| 2 |
6.00 |
0.69 |
3.62 |
4 |
0.75 |
4.75 |
2.44 |
2.07 |
3.06 |
2.38 |
0.94 |
2.44 |
| 21⁄2 |
7.00 |
0.81 |
4.12 |
4 |
0.75 |
5.50 |
2.94 |
2.47 |
3.56 |
2.88 |
1.06 |
2.69 |
| 3 |
7.50 |
0.88 |
5.00 |
4 |
0.75 |
6.00 |
3.57 |
3.07 |
4.25 |
3.50 |
1.12 |
2.69 |
| 31⁄2 |
8.50 |
0.88 |
5.50 |
8 |
0.75 |
7.00 |
4.07 |
3.55 |
4.81 |
4.00 |
1.19 |
2.75 |
| 4 |
9.00 |
0.88 |
6.19 |
8 |
0.75 |
7.50 |
4.57 |
4.03 |
5.31 |
4.50 |
1.25 |
2.94 |
| 5 |
10.00 |
0.88 |
7.31 |
8 |
0.88 |
8.50 |
5.66 |
5.05 |
6.44 |
5.56 |
1.38 |
3.44 |
| 6 |
11.00 |
0.94 |
8.50 |
8 |
0.88 |
9.50 |
6.72 |
6.07 |
7.56 |
6.63 |
1.50 |
3.44 |
| 8 |
13.50 |
1.06 |
10.62 |
8 |
0.88 |
11.75 |
8.72 |
7.98 |
9.69 |
8.63 |
1.69 |
3.94 |
| 10 |
16.00 |
1.12 |
12.75 |
12 |
1.00 |
14.25 |
10.88 |
10.02 |
12.00 |
10.75 |
1.88 |
3.94 |
| 12 |
19.00 |
1.19 |
15.00 |
12 |
1.00 |
17.00 |
12.88 |
12.00 |
14.38 |
12.75 |
2.12 |
4.44 |
| 14 |
21.00 |
1.31 |
16.25 |
12 |
1.12 |
18.75 |
14.14 |
13.25 |
15.75 |
14.00 |
2.19 |
4.94 |
| 16 |
23.50 |
1.38 |
18.50 |
16 |
1.12 |
21.25 |
16.16 |
15.25 |
18.00 |
16.00 |
2.44 |
4.94 |
| 18 |
25.00 |
1.50 |
21.00 |
16 |
1.25 |
22.75 |
18.18 |
17.25 |
19.88 |
18.00 |
2.62 |
5.44 |
| 20 |
27.50 |
1.62 |
23.00 |
20 |
1.25 |
25.00 |
20.20 |
19.25 |
22.00 |
20.00 |
2.81 |
5.62 |
| 22 |
29.50 |
1.75 |
25.25 |
20 |
1.38 |
27.25 |
22.22 |
21.25 |
24.25 |
22.00 |
3.07 |
5.82 |
| 24 |
32.00 |
1.81 |
27.25 |
20 |
1.38 |
29.50 |
24.25 |
23.25 |
26.12 |
24.00 |
3.19 |
5.94 |
Application And Uses
- Nickel Alloy Flanges used in Chemicals Industry
- Nickel Alloy Flanges used in Heavy Oil refineries.
- Nickel Alloy Flanges used in Textile Machinery.
- Nickel Alloy Flanges used in Bitumen upgraders.
- Nickel Alloy Flanges used in Nuclear power (mostly seamless).
- Nickel Alloy Flanges used in Petrochemicals and acids.
- Nickel Alloy Carbon Steel Flanges used in Pulp and Paper Industry
