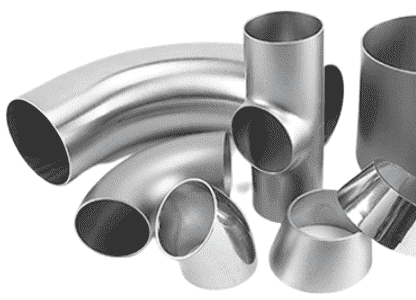

Bhadra Engimech is a leading manufacturer and exporter of premium ASTM A403 WP304 Stainless Steel Pipe Fittings. Grade WP304 is the standard '18/8' stainless buttweld fitting, featuring superior toughness, weldability, and resistance to atmospheric corrosion.
Technical Specifications
ASTM A403 WP304 Pipe Fittings Specification
| Stainless Steel ASTM A403 WP304 Fittings Specifications |
ASTM A403/ ASME SA403 |
| ASTM A403 WP304 SS Pipe Fittings size |
ASTM A403 WP304 Seamless Pipe Fittings: 1/2″ – 10″
ASTM A403 Gr WP304 Welded Pipe Fittings: 1/2″ – 48″ |
| SS WP304 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Stainless Steel 304 Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| ASTM A403 WP304 Pipe fittings Types |
ASTM A403 Gr WP304 Pipe Fitting
ASTM A403 WP304 Stainless Steel Seamless Fittings
Stainless Steel ASTM A403 WP304 ERW Fittings
ASTM A403 WP304 SS Welded Fittings
SS WP304 Fabricated Pipe Fittings
ASTM A403 Gr WP304 Bevel Ends Pipe Fittings |
| 304 Stainless Steel FittingsType |
DN15-DN1200 |
| ASTM A403 304 Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP304 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 304 Pipe Fitting |
| SS Grade WP304 Elbows |
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| ASTM A403 WP304 Pipe Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| 304 Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| SA 403 WP304 Pipe Fittings Origin & Mills |
Indian, Oman, Kuwait, UAE |
| Specialized manufacturer of |
SS UNS S30400 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
ASTM A403 WP304 Pipe Fitting Types
ASTM A403 WP304 Pipe Fittings Equivalent Standards
| Stainless Steel |
Tradename |
UNS no. |
Werkstoff No. |
Density (g/cm3) |
| A403 WP304 Fitting |
304 |
S30400 |
1.4301 |
8.0 |
Mechanical & Physical Properties of ASTM A403 WP304 Pipe Fittings
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Application And Uses
- Stainless Steel A403 WP304 Pipe Fittings used in Chemicals Industry
- Stainless Steel A403 WP304 Pipe Fittings used in Heavy oil refineries.
- Stainless Steel A403 WP304 Pipe Fittings used in Textile Machinery.
- Stainless Steel A403 WP304 Pipe Fittings used in Plumbing.
- Stainless Steel A403 WP304 Pipe Fittings used in Nuclear power (mostly seamless).
- Stainless Steel A403 WP304 Pipe Fittings used in Petrochemicals and acids.
- Stainless Steel A403 WP304 Pipe Fittings used in Pulp and Paper Industry
