Bhadra Engimech is a leading Hastelloy C22 Pipe Fittings Manufacturer in India. Hastelloy C-22 buttweld fittings provide enhanced resistance to pitting, crevice corrosion, and stress corrosion cracking compared to C-276.
Technical Specifications
Hastelloy C22 Pipe Fittings Specification
| C22 Pipe Fittings Specifications |
ASTM B366/ ASME SB366 |
| C22 Hastelloy Alloy Pipe Fittings size |
C22 Seamless Pipe Fittings : 1/2″ – 10″
C22 Welded Pipe Fittings: 1/2″ – 48″ |
| Alloy C22 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Hastelloy C22 Pipe Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| C22 Pipe FittingsType |
DN15-DN1200 |
| ASTM B366 C22 Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade C22 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 C22 Pipe Fitting |
| ASTM B366 C22 Pipe Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| C22 Hastelloy Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third-Party Inspection Report, etc |
| SA 366 C22 Pipe Fittings Origin & Mills |
Indian, Oman, Kuwait, UAE |
| Specialized manufacturer of |
Alloy UNS N06022, N06022 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |

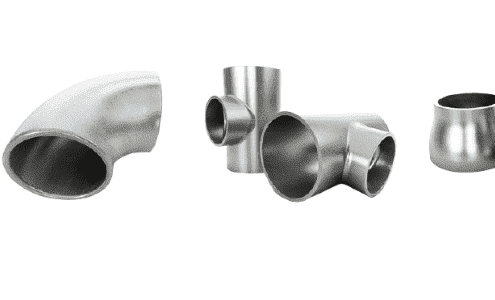

Hastelloy C22 Pipe Fitting Types
Hastelloy C22 Pipe Fittings Equivalent Standards
| STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
BS |
GOST |
| Hastelloy C22 |
N06022 |
2.4602 |
– |
NiCr21Mo14W |
NW 6022 |
– |
– |
Mechanical & Physical Properties of Hastelloy C22 Pipe Fittings
| Grade |
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| C22 |
8.69 g/cm3 |
1399 °C (2550 °F) |
Psi – 45000 , MPa – 310 |
Psi – 1,00,000 , MPa – 690 |
45 % |
Application And Uses
- Hastelloy C22 Pipe Fittings used in Chemicals Industry
- Hastelloy C22 Pipe Fittings used in Heavy oil refineries.
- Hastelloy C22 Pipe Fittings used in Textile Machinery.
- Hastelloy C22 Pipe Fittings used in Plumbing.
- Hastelloy C22 Pipe Fittings used in Nuclear power (mostly seamless).
- Hastelloy C22 Pipe Fittings used in Petrochemicals and acids.
- Hastelloy C22 Pipe Fittings used in Pulp and Paper Industry
