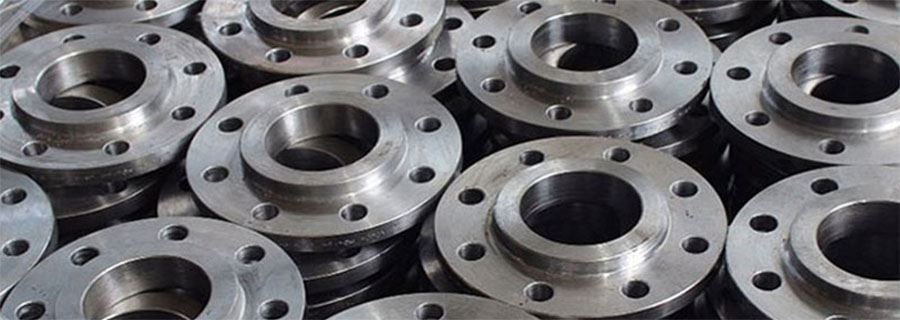

ASTM A182 F316L Flanges

ASTM A182 F316L Flanges

ASTM A182 F316L Flanges Manufacturer, Supplier, and Dealer in India

Bhadra Engimech is one of the topmost ASTM A182 F316L Stainless Steel Flanges Manufacturers in India. SS 316L is the low carbon version of 316 and is highly immune from sensitization (grain boundary carbide precipitation), making it widely used in heavy gauge welded components.

Technical Specifications

ASTM A182 F316L Flanges Specification

Specifications Stainless Steel 316L Flanges
ASME B16.5 Stainless Steel 316L Flanges size range 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Stainless Steel 316L Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
Stainless Steel 316L Flanges Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Stainless Steel 316L Flanges Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Stainless Steel 316L Flanges Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Stainless Steel 316L Flanges Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Stainless Steel 316L Flanges Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Stainless Steel 316L Pipe Flanges Test Certificates EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third-Party Inspection Report, etc
Production technique Forged, Heat-treated, and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Most common types of Stainless Steel 316L Flanges Lap Joint Ring Flange (LJRF), Stainless Steel 316L Flanges Socket Weld Ring Flange (SWRF), Stainless Steel 316L Flanges Slip-On Ring Flange (SORF), Stainless Steel 316L Flanges Blind Ring Flange (BLRF), Stainless Steel 316L Flanges Threaded Ring Flange, Stainless Steel 316L Flanges Ring Type Joint Flange (RTJF), Stainless Steel 316L Flanges Weld Neck Ring Flange (WNRF), Stainless Steel 316L Flanges
Special design As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel 316L Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI ultrasonic flaw detector, Magnetic particle detector
Origin Indian / West Europe / Japan / USA / Korean
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Specialized manufacturer of Rtj Flanges Pn16 Flanges DIN 2566 pn16 DIN 2566 en 1092 1 DIN 2566 pn10 Stainless Steel 316L Lap Joint Flanges Stainless Steel 316L Loose Flanges Stainless Steel 316L Orifice Flanges Stainless Steel 316L AS 4087 Water Flanges Stainless Steel 316L Weld Neck Flanges Stainless Steel 316L Flanges Stainless Steel 316L Slip-On Flanges Stainless Steel 316L Socketweld Flanges Stainless Steel 316L Plate Flanges Stainless Steel 316L Large Diameter Flanges Stainless Steel 316L Sorf Flanges Stainless Steel 316L Blind Flanges Stainless Steel 316L Table Flanges
Stainless Steel 316L Flanges Standard ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, BS Flange, EN Flange, API 6A Flange etc B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) Any other specialised flanges DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
Key markets and industries for Stainless Steel 316L Flanges Nuclear power (mostly seamless). Petrochemicals and acids. Bitumen upgraders. Heavy oil refineries.
Export to Ukraine, Singapore, Brazil, Spain, Egypt, Ireland, Indonesia, Iran, Peru, Oman, Dubai, USA, India, Thailand, Canada, Korea, Saudi Arabia, etc
Stainless Steel 316L Flanges Application To Connect Pipe & Tubes in Petroleum, Power, Gas, Metallurgy, Shipbuilding Construction, Chemical etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM A182 F316L Flange Types

ASTM A182 F316L Slip-on Flange
ASTM A182 F316L Slip-on Flange
ASTM A182 F316L Threaded Flanges
ASTM A182 F316L Threaded Flanges
ASTM A182 F316L Lap Joint Flange
ASTM A182 F316L Lap Joint Flange
ASTM A182 F316L Blind Flange
ASTM A182 F316L Blind Flange
ASTM A182 F316L Socket Weld Flange
ASTM A182 F316L Socket Weld Flange
ASTM A182 F316L Weld Neck Flange
ASTM A182 F316L Weld Neck Flange
ASTM A182 F316L Long Weld Neck Flange
ASTM A182 F316L Long Weld Neck Flange
ASTM A182 F316L Companion Flange
ASTM A182 F316L Companion Flange
ASTM A182 F316L Orifice Flange
ASTM A182 F316L Orifice Flange

ASTM A182 F316L Flanges Equivalent Standards

GRADE WERKSTOFF NR./ DIN UNS – America JIS – Japan BS – British GOST – Russia AFNOR EN -European
F 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Mechanical & Physical Properties of ASTM A182 F316L Flanges

SS Density Melting Range MPa-Psi Tensile Strength MPa-Psi Yield Strength (0.2%Offset) % Elongation
F316L/ SS 316L 8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

ASME B16.5 150 LB Flanges Dimensions & Weight Chart

Nominal Pipe Size Outside Diameter of Flange Thickness of Flange Diameter of Raised Face Diameter of Hub at Base Length Thru Hub Diameter or Bore Diameter of Hub at Bevel Radius of Fillet Depth of Socket
Welding Neck Slip-On Threaded Socket Lap Joint Slip-on Socket Lap Joint
O Q R X Y Y Y W B H r Z
1/2 3-1/2 7/16 1-3/8 1-3/16 1-7/8 5/8 5/8 .88 .90 .84 1/8 3/8
3/4 3-7/8 1/2 1-11/16 1-1/2 2-1/16 5/8 5/8 1.09 1.11 1.05 1/8 7/16
1 4-1/4 9/16 2 1-15/16 2-3/16 11/16 11/16 1.36 1.38 1.32 1/8 1/2
1-1/4 4-5/8 5/8 2-1/2 2-5/16 2-1/4 13/16 13/16 1.70 1.72 1.66 3/16 9/16
1-1/2 5 11/16 2-7/8 2-9/16 2-7/16 7/8 7/8 1.95 1.97 1.90 1/4 5/8
2 6 3/4 3-5/8 3-1/16 2-1/2 1 1 2.44 2.46 2.38 5/16 11/16
2-1/2 7 7/8 4-1/8 3-9/16 2-3/4 1-1/8 1-1/8 2.94 2.97 2.88 5/16 3/4
3 7-1/2 15/16 5 4-1/4 2-3/4 1-3/16 1-3/16 3.57 3.60 3.50 3/8 13/16
3-1/2 8-1/2 15/16 5-1/2 4-13/16 2-13/16 1-1/4 1-1/4 4.07 4.10 4.00 3/8 7/8
4 9 15/16 6-3/16 5-5/16 3 1-5/16 1-5/16 4.57 4.60 4.50 7/16 15/16
5 10 15/16 7.5/16 6-7/16 3-1/2 1-7/16 1-7/16 5.66 5.69 5.56 7/16 15/16
6 11 1 8-1/2 7-9/16 3-1/2 1-9/16 1-9/16 6.72 6.75 6.63 1/2 1-1/16
8 13-1/2 1-1/8 10-5/8 9-11/16 4 1-3/4 1-3/4 8.72 8.75 8.63 1/2 1-1/4
10 16 1-3/16 12-3/4 12 4 1-15/16 1-15/16 10.88 10.92 10.75 1/2 1-5/16
12 19 1-1/4 15 14-3/8 4-1/2 2-3/16 2-3/16 12.88 12.92 12.75 1/2 1-9/16
14 21 1-3/8 16-1/4 15-3/4 5 2-1/4 3-1/8 14.14 14.18 14.00 1/2 1-5/8
16 23-1/2 1-7/16 18-1/2 18 5 2-1/2 3-7/16 16.16 16.19 16.00 1/2 1-3/4
18 25 1-9/16 21 19-7/8 5-1/2 2-11/16 3-13/16 18.18 18.20 18.00 1/2 1-15/16
20 27-1/2 1-11/16 23 22 5-11/16 2-7/8 4-1/16 20.20 20.25 20.00 1/2 2-1/8
24 32 1-7/8 27-1/4 26-1/8 6 3-1/4 4-3/8 24.25 24.25 24.00 1/2 2-1/2

Application And Uses

  • ASTM A182 F316L Flanges used in Chemicals Industry
  • ASTM A182 F316L Flanges used in Heavy Oil refineries.
  • ASTM A182 F316L Flanges used in Textile Machinery.
  • ASTM A182 F316L Flanges used in Bitumen upgraders.
  • ASTM A182 F316L Flanges used in Nuclear power (mostly seamless).
  • ASTM A182 F316L Flanges used in Petrochemicals and acids.
  • ASTM A182 F316L Carbon Steel Flanges used in Pulp and Paper Industry
