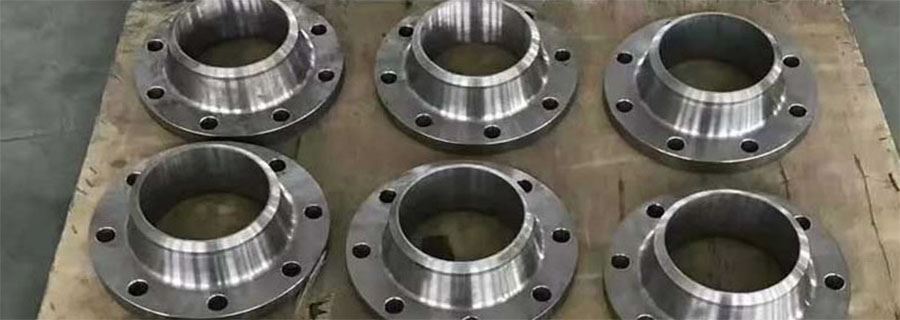

ASTM A182 F316 Flanges

ASTM A182 F316 Flanges Manufacturer, Supplier, and Dealer in India

Bhadra Engimech is a premium manufacturer and supplier of ASTM A182 F316 Stainless Steel Flanges in India. Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 among austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304.

Technical Specifications

ASTM A182 F316 Flanges Specification

Specifications	Stainless Steel 316 Flanges
ASME B16.5 Stainless Steel 316 Flanges size range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
ASTM A182 316 Flanges Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASTM A182 316 Flanges Standard DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
ASTM A182 316 Flanges Standard ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
ASTM A182 316 Flanges Standard UNI	6Bar 10Bar 16Bar 25Bar 40Bar
ASTM A182 316 Flanges Standard JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
ASTM A182 316 Flanges Standard EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Forged / Threaded / Screwed / Plate
Flange supporting material	Gasket, Ring Joint, Flange Bolts
ASTM A182 316 316 Pipe Flanges Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third-Party Inspection Report, etc
Production technique	Forged, Heat-treated, and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Most common types of Stainless Steel 316 Flanges	Weld Neck Ring Flange (WNRF), Stainless Steel 316 Flanges Slip-On Ring Flange (SORF), Stainless Steel 316 Flanges Blind Ring Flange (BLRF), Stainless Steel 316 Flanges Socket Weld Ring Flange (SWRF), Stainless Steel 316 Flanges Threaded Ring Flange, Stainless Steel 316 Flanges Lap Joint Ring Flange (LJRF), Stainless Steel 316 Flanges Ring Type Joint Flange (RTJF), Stainless Steel 316 Flanges
316 Stainless Steel Flanges Special design	As per your drawing AS, ANSI, BS, DIN, and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel 316 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI ultrasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine, etc
Specialized manufacturer of	Rtj Flanges Pn16 Flanges DIN 2566 pn16 DIN 2566 en 1092 1 DIN 2566 pn10 ASTM A182 316 Large Diameter Flanges ASTM A182 316 Sorf Flanges ASTM A182 316 Blind Flanges ASTM A182 316 Table Flanges ASTM A182 316 Weld Neck Flanges ASTM A182 316 Flanges ASTM A182 316 Slip-On Flanges ASTM A182 316 Socketweld Flanges ASTM A182 316 Plate Flanges ASTM A182 316 Lap Joint Flanges ASTM A182 316 Loose Flanges ASTM A182 316 Orifice Flanges ASTM A182 316 AS 4087 Water Flanges
ASTM A182 316 Flanges Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) Any other specialized flanges DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276

ASTM A182 F316 Flange Types

ASTM A182 F316 Slip-on Flange

ASTM A182 F316 Threaded Flanges

ASTM A182 F316 Lap Joint Flange

ASTM A182 F316 Blind Flange

ASTM A182 F316 Socket Weld Flange

ASTM A182 F316 Weld Neck Flange

ASTM A182 F316 Long Weld Neck Flange

ASTM A182 F316 Companion Flange

ASTM A182 F316 Orifice Flange

ASTM A182 F316 Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Mechanical & Physical Properties of ASTM A182 F316 Flanges

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217

ASME B16.5 300 LB Flanges Dimensions & Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129 Flange	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Application And Uses

ASTM A182 F316 Flanges used in Chemicals Industry
A182 F316 Flanges used in Heavy Oil refineries.
ASTM A182 F316 Flanges used in Textile Machinery.
ASTM A182 F316 Flanges used in Bitumen upgraders.
ASTM A182 F316 Flanges used in Nuclear power (mostly seamless).
ASTM A182 F316 Flanges used in Petrochemicals and acids.
ASTM A182 F316 Carbon Steel Flanges used in Pulp and Paper Industry
