Incoloy 800 Flanges

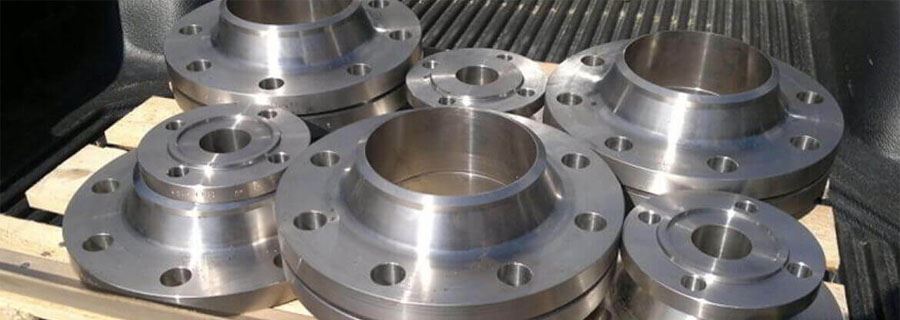

Incoloy 800 Flanges

Incoloy 800 Flanges Manufacturer, Supplier, and Stockist in India

Bhadra Engimech is a leading Incoloy 800 Flanges Manufacturer in India. Incoloy 800 is a nickel-iron-chromium alloy with high strength and excellent resistance to oxidation and carburization in high-temperature atmospheres.

Technical Specifications

Incoloy 800 Flanges Specification

Specifications Incoloy Flanges
Incoloy Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 Incoloy Flange size range 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Incoloy Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Incoloy Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Incoloy Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Incoloy Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Incoloy Flange Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Most common types of Incoloy Flanges Socket Weld Ring Flange (SWRF), Incoloy Threaded Ring Flange, Incoloy Blind Ring Flange (BLRF), Incoloy Weld Neck Ring Flange (WNRF), Incoloy Slip-On Ring Flange (SORF), Incoloy Ring Type Joint Flange (RTJF), Incoloy Lap Joint Ring Flange (LJRF), Incoloy
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Incoloy Pipe Flanges Test Certificates EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Special design As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Incoloy Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of DIN 2566 en 1092 1 Pn16 Flange DIN 2566 pn16 Rtj Flange Incoloy Sorf Flange Incoloy Table Flanges DIN 2566 pn10 Incoloy Large Diameter Flange Incoloy Threaded Flanges Incoloy Blind Flanges ASTM B564 Plate Flange Incoloy Weld Neck Flanges Incoloy Loose Flanges ASTM B564 Orifice Flange Incoloy Slip-On Flanges Alloy Lap Joint Flange Incoloy Socketweld Flanges Incoloy AS 4087 Water Flanges
Incoloy Flanges Standard ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

Incoloy 800 Flange Types

Incoloy 800 Slip-on Flange
Incoloy 800 Slip-on Flange
Incoloy 800 Threaded Flanges
Incoloy 800 Threaded Flanges
Incoloy 800 Lap Joint Flange
Incoloy 800 Lap Joint Flange
Incoloy 800 Blind Flange
Incoloy 800 Blind Flange
Incoloy 800 Socket Weld Flange
Incoloy 800 Socket Weld Flange
Incoloy 800 Weld Neck Flange
Incoloy 800 Weld Neck Flange
Incoloy 800 Long Weld Neck Flange
Incoloy 800 Long Weld Neck Flange
Incoloy 800 Companion Flange
Incoloy 800 Companion Flange
Incoloy 800 Orifice Flange
Incoloy 800 Orifice Flange

Incoloy 800 Flanges Equivalent Standards

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T

Chemical Composition of Incoloy 800 Flanges

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
800 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

ASME B16.5 300 LB Flanges Dimensions & Weight Chart

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 Flanges PN14 Flanges 95 67 4 M12 14
AS 2129 Flange Table C Flanges 95 67 4 13 14
Table D Flanges 95 67 4 13 14
Table E Flanges 95 67 4 13 14
Table F Flanges 95 67 4 13 14
Table H Flanges 114 83 4 16 17
Table J Flanges 114 83 4 16 17
ANSI B16.5 Flanges ANSI 150 Flanges 89 60 4 13 16
ANSI 300 Flanges 95 67 4 13 16
ANSI 600 Flanges 95 67 4 13 16
ANSI 900 Flanges 121 83 4 19 22
ANSI 1500 Flanges 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 Flanges 80 55 4 M10 11
PN10 Flanges 95 65 4 M12 14
PN16 Flanges 95 65 4 M12 14
PN20 Flanges 90 60.5 4 M14 16
PN25 Flanges 95 65 4 M12 14
PN40 Flanges 95 65 4 M12 14

Application And Uses

  • Incoloy 800 Flanges used in Chemicals Industry
  • Incoloy 800 Flanges used in Heavy oil refineries.
  • Incoloy 800 Flanges used in Textile Machinery.
  • Incoloy 800 Flanges used in Bitumen upgraders.
  • Incoloy 800 Flanges used in Nuclear power (mostly seamless).
  • Incoloy 800 Flanges used in Petrochemicals and acids.
  • ASTM B564 Incoloy 800 Flanges used in Pulp and Paper Industry
