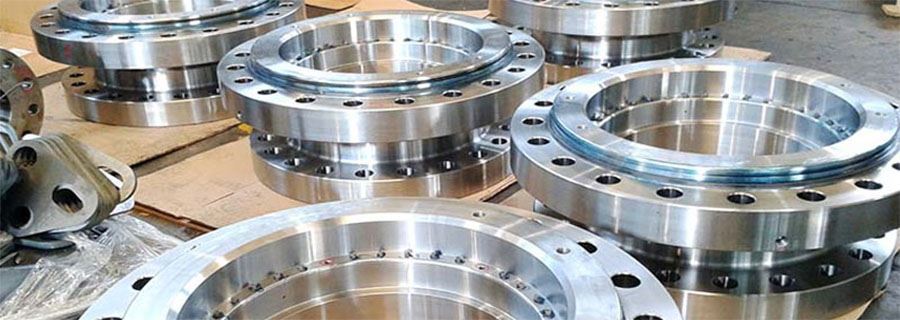

ASTM A182 F304 Flanges

ASTM A182 F304 Flanges Manufacturer, Supplier, and Dealer in India

Bhadra Engimech is a leading manufacturer and exporter of ASTM A182 F304 Stainless Steel Flanges. SS 304 is the standard '18/8' stainless steel and is widely used for industrial corrosion-resistant applications. We supply F304 flanges in a variety of connection styles including Slip-On, Threaded, Lap Joint, Blind, Socket Weld, and Weld Neck. Our products conform to ASME B16.5 and other international standards like DIN, EN-1092, and BS 10.

Technical Specifications

ASTM A182 F304 Flange Types

ASTM A182 F304 Slip-on Flange

ASTM A182 F304 Threaded Flanges

ASTM A182 F304 Lap Joint Flange

ASTM A182 F304 Blind Flange

ASTM A182 F304 Socket Weld Flange

ASTM A182 F304 Weld Neck Flange

ASTM A182 F304 Long Weld Neck Flange

ASTM A182 F304 Companion Flange

ASTM A182 F304 Orifice Flange

ASTM A182 F304 Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10

Mechanical & Physical Properties of ASTM A182 F304 Flanges

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000, MPa – 515	Psi – 30000, MPa – 205	35 %

ASME B16.5 300 LB Flanges Dimensions & Weight Chart

Pipe Normal Diam.		O.D. Flange	Thk. Of Flange Min	Diam. of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diam. of Bolt Circle	Diam. of Bolt Holes	Number of Bolts	Diam. of Bolts (inch)	KG	LB
inch	dn	O	C	X	G	Y	T	BC	BH	BN	BD
1/2″	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2″	0.4	0.9
3/4″	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2″	0.7	1.5
1″	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2″	0.8	1.8
1-1/4″	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2″	1.2	2.6
1-1/2″	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2″	1.5	3.3
2″	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8″	2.3	5.1
2-1/2″	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8″	3.7	8.1
3″	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8″	4.1	9
3-1/2″	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8″	5.1	11.2
4″	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8″	5.9	13
5″	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4″	7	15.4
6″	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4″	8.4	18.5
8″	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4″	13	28.6
10″	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8″	18	39.5
12″	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8″	29	64
14″	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1″	39	86
16″	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1″	47	103
18″	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8″	57	126
20″	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8″	76	167
24″	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4″	97	214

Application And Uses

ASTM A182 ASTM A182 F304 Flanges used in Chemicals Industry
A182 ASTM A182 F304 Flanges used in Heavy Oil refineries.
ASTM A182 ASTM A182 F304 Flanges used in Textile Machinery.
ASTM A182 ASTM A182 F304 Flanges used in Bitumen upgraders.
ASTM A182 ASTM A182 F304 Flanges used in Nuclear power (mostly seamless).
ASTM A182 ASTM A182 F304 Flanges used in Petrochemicals and acids.
ASTM A182 ASTM A182 F304 Carbon Steel Flanges used in Pulp and Paper Industry
