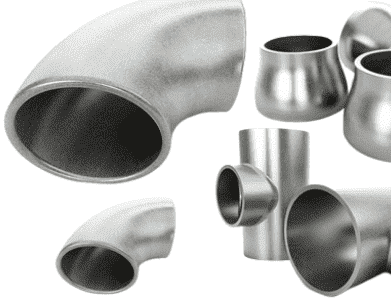

Bhadra Engimech is a leading supplier and manufacturer of premium Inconel 625 Pipe Fittings in India. With high concentrations of nickel, chromium, and molybdenum, Inconel 625 offers exceptional resistance to pitting, crevice corrosion, and high pressures.
Technical Specifications
Inconel 625 Pipe Fittings Specification
| 625 Pipe Fittings Specifications |
ASTM B366/ ASME SB366 |
| 625 Inconel Alloy Pipe Fittings size |
625 Seamless Pipe Fittings : 1/2″ – 10″
625 Welded Pipe Fittings : 1/2″ – 48″ |
| Alloy 625 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Inconel 625 Pipe Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 625 Pipe FittingsType |
DN15-DN1200 |
| ASTM B366 625 Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade 625 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 625 Pipe Fitting |
| ASTM B366 625 Pipe Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| 625 Inconel Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| SA 366 625 Pipe Fittings Origin & Mills |
Indian, Oman, Kuwait, UAE |
| Specialized manufacturer of |
Alloy UNS N06625, N06625 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Inconel 625 Pipe Fitting Types
Inconel 625 Pipe Fittings Equivalent Standards
| STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
BS |
GOST |
OR |
| Inconel 625 |
N06625 |
2.4856 |
NC22DNB4M |
NiCr22Mo9Nb |
NCF 625 |
NA 21 |
ХН75МБТЮ |
ЭИ602 |
Mechanical & Physical Properties of Inconel 625 Pipe Fittings
| Grade |
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| 625 |
8.4 g/cm3 |
1350 °C (2460 °F) |
Psi – 75,000 , MPa – 517 |
Psi – 1,35,000 , MPa -930 |
42.5 % |
Application And Uses
- Inconel 625 Pipe Fittings used in Chemicals Industry
- Inconel 625 Pipe Fittings used in Heavy oil refineries.
- Inconel 625 Pipe Fittings used in Textile Machinery.
- Inconel 625 Pipe Fittings used in Plumbing.
- Inconel 625 Pipe Fittings used in Nuclear power (mostly seamless).
- Inconel 625 Pipe Fittings used in Petrochemicals and acids.
- Inconel 625 Pipe Fittings used in Pulp and Paper Industry
