Bhadra Engimech is a leading Monel 400 Pipe Fittings Manufacturer and exporter in India. Monel 400 fittings provide high mechanical strength combined with excellent resistance to hydrofluoric acid, saltwater, and marine conditions.
Technical Specifications
Monel 400 Pipe Fittings Specification
| 400 Pipe Fittings Specifications |
ASTM B366/ ASME SB366 |
| 400 Monel Alloy Pipe Fittings size |
400 Seamless Pipe Fittings: 1/2″ – 10″
400 Welded Pipe Fittings: 1/2″ – 48″ |
| Alloy 400 Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Monel 400 Pipe Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 400 Pipe FittingsType |
DN15-DN1200 |
| ASTM B366 400 Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade 400 Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 400 Pipe Fitting |
| ASTM B366 400 Pipe Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| 400 Monel Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| SA 366 400 Pipe Fittings Origin & Mills |
Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of |
Alloy UNS N04400, N04400 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |

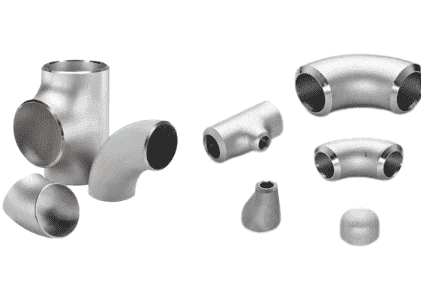

Monel 400 Pipe Fitting Types
Chemical Composition of Monel 400 Pipe Fittings
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Hardness (Brinell) |
| Monel 400 |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 35,000 , MPa – 240 |
40 % |
– |
Dimensions & Weight Chart of Monel 400 Pipe Fittings
| Nominal Pipe Size |
All Fittings |
All Fittings |
All Fittings |
Elbows/ Tees |
180° Return Bends |
180° Return Bends |
180 Deg Return Bends |
Reducers |
Caps |
| NPS |
O.D. at Bevel (1), (2) |
I.D. at End
(1), (3), (4) |
Wall Thickness (3) |
Centre-to-End Dimension A,B,C,M |
Centre-to-Centre O |
Back-to-Face K |
Alignment of Ends U |
Overall Length H |
Overall Length E |
| ½ to 2½ |
0.06
-0.03 |
0.03 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 3 to 3 ½ |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 4 |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 5 to 8 |
0.09
-0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.25 |
| 10 to 18 |
0.16
-0.12 |
0.12 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 20 to 24 |
0.25
-0.19 |
0.19 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 26 to 30 |
0.25
-0.19 |
0.19 |
Not less than 87.5% of nominal thickness |
0.12 |
… |
… |
… |
0.19 |
0.38 |
| 32 to 48 |
0.25
-0.19 |
0.19 |
Not less than 87.5% of nominal thickness |
0.19 |
… |
… |
… |
0.19 |
0.38 |
Application And Uses
- ASTM B366 Monel 400 Pipe Fittings used in Chemicals Industry
- ASTM B366 Monel 400 Pipe Fittings used in Heavy oil refineries.
- ASTM B366 Monel 400 Pipe Fittings used in Textile Machinery.
- ASTM B366 Monel 400 Pipe Fittings used in Plumbing.
- ASTM B366 Monel 400 Pipe Fittings used in Nuclear power (mostly seamless).
- ASTM B366 Monel 400 Pipe Fittings used in Petrochemicals and acids.
- ASTM B366 Monel 400 Pipe Fittings used in Pulp and Paper Industry
