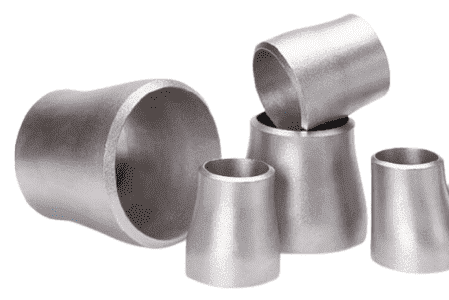

Bhadra Engimech is a leading ASTM A403 WP316L Stainless Steel Pipe Fittings Manufacturer in India. WP316L is the low-carbon version of WP316, making it highly immune to sensitization and corrosion in critical structural weld applications.
Technical Specifications
ASTM A403 WP316L Pipe Fittings Specification
| ASTM A403 WP316L SS Fittings Specifications |
ASTM A403 WP316L |
| Grade WP316L Stainless Steel Pipe Fittings size |
ASTM A403 WP316L Seamless Pipe Fittings: 1/2″ – 10″
ASME SA 403 WP316L Welded Pipe Fittings: 1/2″ – 48″ |
| ASTM A403 SS 316L Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| ASME SA403M SS 316L Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| ASTM A403 WP316L Pipe fittings Types |
ASME SA 403 WP316L Pipe Fitting
ASME SA403 316L Stainless Steel Seamless Fittings
ASTM A403 WP316L SS ERW Fittings
Grade WP316L Stainless Steel Welded Fittings
ASTM A403 SS 316L Fabricated Pipe Fittings
ASME SA 403 WP316L Bevel Ends Pipe Fittings |
| ASME SA403M Stainless Steel WP 316L FittingsType |
DN15-DN1200 |
| ASTM A403 WP316L Stainless Steel Pipe Fitting Connection |
Welding |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom A403 WP316L Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Stainless Steel 316L Pipe Fitting |
| WP316L SS Elbows |
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| ASTM A403 WP316L Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
| ASME SA403M Stainless Steel WP 316L Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| A403 Gr WP316L Pipe Fittings Origin & Mills |
Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of |
A403 Grade WP316L 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Manufacturer and Supplier of |
Steel Mart India is a leading manufacture & supplier of Grade 316L Stainless Steel Stainless Steel Pipe Fittings in the following forms:
Grade 316L Stainless Steel Elbows 45˚ and 90˚ – long radius and short radius
Grade 316L Stainless Steel Return bends 180˚ – long radius and short radius
Grade 316L Stainless Steel Reducers – concentric and eccentric
Grade 316L Stainless Steel Tees – equal and reducing
Grade 316L Stainless Steel Caps
Grade 316L Stainless Steel Stub ends – Type B, to MSS SP-43 |
ASTM A403 WP316L Pipe Fitting Types
ASTM A403 WP316L Stub End
ASTM A403 WP316L Pipe Fittings Equivalent Standards
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition of ASTM A403 WP316L Pipe Fittings
| Product supplied |
City |
| ASTM A403 Grade WP316L Pipe Fitting for Oil and gas industry |
Bareilly, Uttar Pradesh |
| Carbon Steel A403 Grade WP316L Pipe Fitting supplied to Pharmaceutical processing industry |
Mumbai, Maharashtra |
| ASTM A403 Grade WP316L Cross Fitting supply for Piping |
Andhra Pradesh, Rajkot |
| ASTM A403 Grade WP316L Pipe Fitting supplied to industry |
Raipur, Chhattisgarh |
Mechanical & Physical Properties of ASTM A403 WP316L Pipe Fittings
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1399 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Application And Uses
- Stainless Steel A403 WP316L Pipe Fittings used in Chemicals Industry
- Stainless Steel A403 WP316L Pipe Fittings used in Heavy oil refineries.
- Stainless Steel A403 WP316L Pipe Fittings used in Textile Machinery.
- Stainless Steel A403 WP316L Pipe Fittings used in Plumbing.
- Stainless Steel A403 WP316L Pipe Fittings used in Nuclear power (mostly seamless).
- Stainless Steel A403 WP316L Pipe Fittings used in Petrochemicals and acids.
- Stainless Steel A403 WP316L Pipe Fittings used in Pulp and Paper Industry
