Hastelloy C22 Flanges

Hastelloy C22 Flanges Manufacturer, Supplier, and Stockist in India

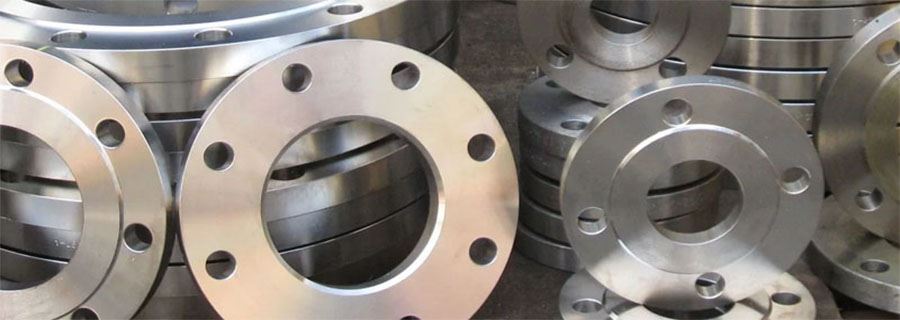

Bhadra Engimech is a leading Hastelloy C22 Flanges Manufacturer and Stockist in India. Hastelloy C22 is a versatile nickel-chromium-molybdenum-tungsten alloy with better overall corrosion resistance than other nickel-chromium-molybdenum alloys, including Hastelloy C-276.

Technical Specifications

Hastelloy C22 Flanges Specification

Specifications	Hastelloy C22 Flanges
Hastelloy C22 Flanges Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 Hastelloy C22 Flange size range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Hastelloy C22 Flange Standard DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Hastelloy C22 Flange Standard ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Hastelloy C22 Flange Standard UNI	6Bar 10Bar 16Bar 25Bar 40Bar
Hastelloy C22 Flange Standard EN	6Bar 10Bar 16Bar 25Bar 40Bar
Hastelloy C22 Flange Standard JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types	Forged / Threaded / Screwed / Plate
Flange supporting material	Gasket, Ring Joint, Flange Bolts
Most common types of Hastelloy C22 Flanges	Socket Weld Ring Flange (SWRF), Hastelloy C22 Threaded Ring Flange, Hastelloy C22 Blind Ring Flange (BLRF), Hastelloy C22 Weld Neck Ring Flange (WNRF), Hastelloy C22 Slip-On Ring Flange (SORF), Hastelloy C22 Ring Type Joint Flange (RTJF), Hastelloy C22 Lap Joint Ring Flange (LJRF), Hastelloy C22
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Hastelloy C22 Pipe Flanges Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third-Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Hastelloy C22 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of	DIN 2566 en 1092 1 Pn16 Flange DIN 2566 pn16 Rtj Flange Hastelloy C22 Sorf Flange Hastelloy C22 Table Flanges DIN 2566 pn10 Hastelloy C22 Large Diameter Flange Hastelloy C22 Threaded Flanges Hastelloy C22 Blind Flanges ASTM B564 Plate Flange Hastelloy C22 Weld Neck Flanges Hastelloy C22 Loose Flanges ASTM B564 Orifice Flange Hastelloy C22 Slip-On Flanges Alloy Lap Joint Flange Hastelloy C22 Socketweld Flanges Hastelloy C22 AS 4087 Water Flanges
Test	A hydrostatic testing machine, direct-reading Spectrograph,UI ultrasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Hastelloy C22 Flanges Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specialised flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

Hastelloy C22 Flange Types

Hastelloy C22 Slip-on Flange

Hastelloy C22 Threaded Flanges

Hastelloy C22 Lap Joint Flange

Hastelloy C22 Blind Flange

Hastelloy C22 Socket Weld Flange

Hastelloy C22 Weld Neck Flange

Hastelloy C22 Long Weld Neck Flange

Hastelloy C22 Companion Flange

Hastelloy C22 Orifice Flange

Hastelloy C22 Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

Chemical Composition of Hastelloy C22 Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

ASME B16.5 300 LB Flanges Dimensions & Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Application And Uses

Hastelloy C22 Flanges used in Chemicals Industry
Hastelloy C22 Flanges used in Heavy Oil refineries.
Hastelloy C22 Flanges used in Textile Machinery.
Hastelloy C22 Flanges used in Bitumen upgraders.
Hastelloy C22 Flanges used in Nuclear power (mostly seamless).
Hastelloy C22 Flanges used in Petrochemicals and acids.
Hastelloy C22 Flanges used in Pulp and Paper Industry
