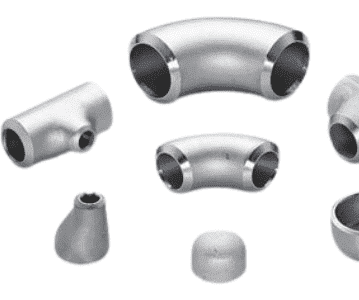

Bhadra Engimech is one of the topmost ASTM A403 WP304L Pipe Fittings Manufacturers in India. WP304L is the low-carbon version of WP304, preventing carbide precipitation during welding and ensuring maximum resistance to intergranular corrosion in heavy-gauge welded systems.
Technical Specifications
ASTM A403 WP304L Pipe Fittings Specification
| ASTM A403 WP304L Stainless Steel Fittings Specifications |
ASTM A403/ ASME SA403 |
| SS WP304L Pipe Fittings Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| ASTM A403 WP304L SS Pipe Fittings size |
ASTM A403 WP304L Seamless Pipe Fittings: 1/2″ – 10″
ASTM A403 Grade WP304L Welded Pipe Fittings: 1/2″ – 48″ |
| Stainless Steel 304L Fittings Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 304L Stainless Steel FittingsType |
DN15-DN1200 |
| ASTM A403 304L Pipe Fitting Connection |
Welding |
| ASTM A403 WP304L Pipe fittings Types |
ASTM A403 Grade WP304L Pipe Fitting
Stainless Steel ASTM A403 WP304L Seamless Fittings
ASTM A403 WP304L Stainless Steel ERW Fittings
ASTM A403 WP304L SS Welded Fittings
SS WP304L Fabricated Pipe Fittings
ASTM A403 Grade WP304L Bevel Ends Pipe Fittings |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Gr WP304L Pipe Fitting |
| Size Range |
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) SA 403 WP304L Pipe Fitting |
| SS Grade WP304L Elbows |
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| 304L Stainless Steel Pipe Fittings Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third-Party Inspection Report, etc |
| ASTM A403 WP 304L Pipe Fittings Origin & Mills |
Indian, Oman, Kuwait, UAE |
| ASTM A403 WP304L Fittings Manufacturing process |
Push, Press, Forge, Cast, etc. |
ASTM A403 WP304L Pipe Fitting Types
ASTM A403 WP304L Stub End
ASTM A403 WP304L Pipe Fittings Equivalent Standards
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 304L |
1.4306 / 1.4307 |
S30403 |
SUS 304L |
3304S11 |
03Х18Н11 |
Z3CN18‐10 |
X2CrNi18-9 / X2CrNi19-11 |
Mechanical & Physical Properties of ASTM A403 WP304L Pipe Fittings
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Application And Uses
- Stainless Steel A403 WP304L Pipe Fittings used in Chemicals Industry
- Stainless Steel A403 WP304L Pipe Fittings used in Heavy oil refineries.
- Stainless Steel A403 WP304L Pipe Fittings used in Textile Machinery.
- Stainless Steel A403 WP304L Pipe Fittings used in Plumbing.
- Stainless Steel A403 WP304L Pipe Fittings used in Nuclear power (mostly seamless).
- Stainless Steel A403 WP304L Pipe Fittings used in Petrochemicals and acids.
- Stainless Steel A403 WP304L Pipe Fittings used in Pulp and Paper Industry
