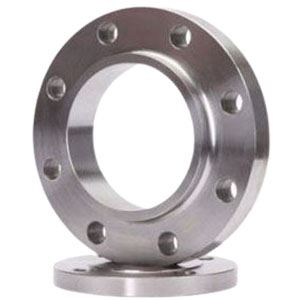

Slip On Flanges
Slip-on Flanges Manufacturer, Supplier & Stockist in India
Bhadra Engimech is one of the most leading Slip-on Flanges Manufacturer in Mumbai, India. ANSI B 16.5 are designed and developed in accordance with international quality standards. One of our popular products in the Metal Market is Slip-on Flanges. We are an ISO 9001:2015 certified company with a global presence. We are offering market-leading prices on ASTM A182 Slip-on Pipe Flanges to all our customers, with a stock of standard, sizes, and types available for immediate delivery worldwide. We are named as one of the top Manufacturers of Slip-on Flanges in India. Our available qualitative range of Slip-on Flanges and other types of products are exclusively designed for several piping applications of various industries such as Chemical, Petrochemical, Building, and Construction, and many more.
We are the world's topmost Slip-on Flanges manufacturer in India. Performance and Dependability of the Slip-on Flanges has made Bhadra Engimech the leading Stockholder, Manufacturer, Supplier, Importer, and Exporter in India. We mostly use very high-quality raw materials for manufacturing these products. Over the years, we have delivered thousands of containers of Slip-on Flanges all over the world. Slip-on Flanges products are mainly designed to control and help the flow of liquids, gases, or other materials. Moreover, we serve our customers with Fabrication and Rubber Lining according to our Clients demand. We also supply Blind Flanges, Weld Neck Flanges, Socket weld Flanges.
Slip On Flanges Specification
| Specifications | Details |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6, 10, 16, 25, 40 Etc. |
| Standards | ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Grade Specifications of Slip on Flanges
| Material | Standard | Grades |
|---|---|---|
| Stainless Steel | ASTM A182, A240 | F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H, 317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Carbon Steel | ASTM A105 | Gr. F42, 46, 52, 56, 60, 65, 70 |
| Alloy Steel | ASTM A182 | F1, F5, F9, F11, F22, F91 |
| Nickel Alloy Steel | ASTM SB564, SB160, SB472, SB162 | Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 800, Inconel 825, Inconel 600, Inconel 625, Inconel 601, Hastelloy C 276, Alloy 20 |
| Copper Alloy | ASTM SB 61, SB62, SB151, SB152 | UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
| Duplex Steel | ASTM A182, A240 | UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |
Dimension Chart of Slip On Flanges
| Outside Diameter | Inside Diameter |
|---|---|
| ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm | ≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / - 0 mm |
| Diameter of Contact Face | Outside Diameter of Hub |
| 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm |
≤ 12 = + 2.4 mm / - 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore | Drilling |
| Same as for Inside Diameter | Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing: ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness | Length thru Hub |
| ≤ 18 = + 3.2 mm / - 0 | ≥ 20 = + 4.8 mm / - 0 | ≤ 18 = + 3.2 mm / - 0.8 mm | ≥ 20 = + 4.8 mm / - 1.6 mm |
About Slip On Flanges
Slip On Flanges merchandise square measure used for associating and connecting pipes, pumps, valves, and far alternative instrumentality to make a piping system below the scale of two or four inches in diameter. Slip On Flanges are basically employed and manufactured to close the open ends and fit them tightly with valves or piping systems. We are one of the eminent Slip On Flanges Manufacturers and suppliers, importers, exporters, and dealers in the contemporary market. We design ASME B16.5 Slip On pipe flanges of various sizes, shape, colour, standards with extreme dimensional precision. We finally finish our Slip On Flanges keeping all the national and international standards in mind.
Slip-on Flanges Application and Uses
- Slip-on Flanges Uses in Textile machinery
- Slip-on Flanges Uses in Oil and gas industry
- Slip-on Flanges Uses in Medical Gas Pipeline Systems
- Slip-on Flanges Uses in Pharmaceutical processing industry
- Slip-on Flanges Uses in Fluid piping.
- Slip-on Flanges Uses in Modern architecture.
- Slip-on Flanges Uses in Water waste projects.
