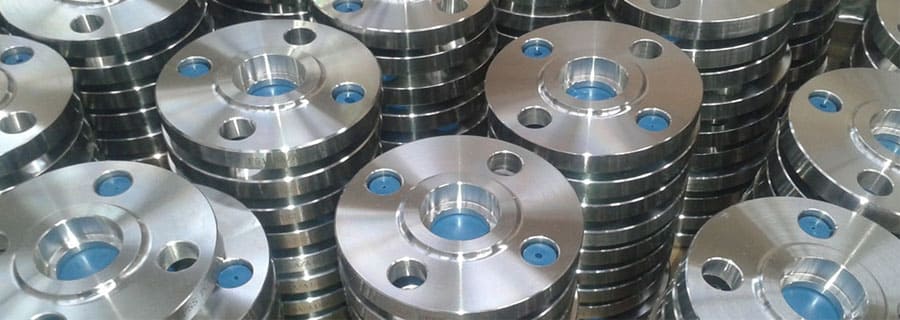

Incoloy 825 Flanges

Incoloy 825 Flanges Manufacturer, Supplier, and Stockist in India

Bhadra Engimech is a premier Incoloy 825 Flanges Manufacturer in India. Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium, designed to provide exceptional resistance to many corrosive environments, both oxidizing and reducing.

Technical Specifications

Incoloy 825 Flanges Specification

Specification	ASTM B366, ASTM SB 366, ASTM B564, ASME SB564
Grade	ASTM B564 Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800)
Connect Type/ Flange Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove
Surface treatment	Anti-rust oil, transparent/ yellow/ black anti-rust paint, Zinc, hot-dipped galvanized
Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Pressure	DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K;
Standard	ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange B.S : BS4504 , BS3293, BS1560, BS10 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 AS 2129: table D; table E; table H The other standard:AWWA C207;EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 American standard (ANSI) German (DIN) British standard (BS) Any other specialised flanges.
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations ASTM B564 Incoloy 825 Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange
Specialized manufacturer of	ASTM B564 Incoloy 825 Blind Flanges, ASTM B564 Incoloy 825 Table Flanges, ASTM B564 Incoloy 825 Weld Neck Flanges, ASTM B564 Incoloy 825 Threaded Flanges, ASTM B564 Incoloy 825 Slip-On Flanges, ASTM B564 Incoloy 825 Socketweld Flanges, ASTM B564 Incoloy 825 Plate Flanges, ASTM B564 Incoloy 825 Lap Joint Flanges, ASTM B564 Incoloy 825 Loose Flanges, and ASTM B564 Incoloy 825 Orifice Flanges. ASTM B564 Incoloy 825 AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500.

Incoloy 825 Flange Types

Incoloy 825 Slip-on Flange

Incoloy 825 Threaded Flanges

Incoloy 825 Lap Joint Flange

Incoloy 825 Blind Flange

Incoloy 825 Socket Weld Flange

Incoloy 825 Weld Neck Flange

Incoloy 825 Long Weld Neck Flange

Incoloy 825 Companion Flange

Incoloy 825 Orifice Flange

Incoloy 825 Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T

Chemical Composition of Incoloy 825 Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

ASME B16.5 300 LB Flanges Dimensions & Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Application And Uses

Incoloy 825 Flanges used in Chemicals Industry
Incoloy 825 Flanges used in Heavy oil refineries.
Incoloy 825 Flanges used in Textile Machinery.
Incoloy 825 Flanges used in Bitumen upgraders.
Incoloy 825 Flanges used in Nuclear power (mostly seamless).
Incoloy 825 Flanges used in Petrochemicals and acids.
ASTM B564 Incoloy 825 Flanges used in Pulp and Paper Industry
