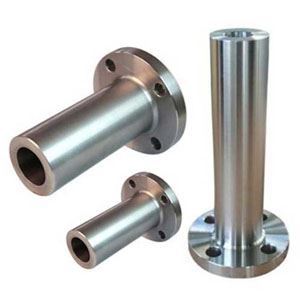

Long Weld Neck Flanges
Long Weld Neck Flanges Manufacturer, Supplier & Stockist in India
Bhadra Engimech is one of the most leading Long Weld Neck Flanges Manufacturer in Mumbai, India. ASTM A182 Long Weld Neck Pipe Flanges products are designed and developed in accordance with international quality standards. One of our popular products in the Metal Market is Long Weld Neck Flanges. We are an ISO 9001:2015 certified company with a global presence. We are offering market-leading prices on ANSI B 16.5 to all our customers, with a stock of standard, grades, sizes, and types available for immediate delivery worldwide.
We are the world’s topmost Long Weld Neck Flanges Manufacturer in Mumbai, India. The performance and Dependability of Bhadra Engimech has made us the leading Stockholder, Manufacturer, Supplier, Importer, and Exporter in India. MSS SP44 products are mainly designed to control and help the flow of liquids, gases, or other materials. We offer different types of flanges such as Lap joint Flanges, Companion Flanges and many more.
Long Weld Neck Flanges Specification
| Material of Construction | Standard | Grades |
|---|---|---|
| Stainless Steel Long Neck Flanges | ASTM A182 , A240 | F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Carbon Steel Long Neck Flanges | ASTM A105 | Gr. F42,46,52,56,60,65,70 |
| Alloy Steel Long Neck Flanges | ASTM A182 | F1,F5,F9,F11,F22,F91 |
| Nickel Alloy Long Neck Flanges | ASTM SB564, SB160, SB472, SB162 | Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 800, Inconel 825, Inconel 600, Inconel 625, Inconel 601, Hastelloy C 276, Alloy 20 |
| Copper Alloys Long Neck Flanges | ASTM SB 61 , SB62 , SB151 , SB152 | UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
| Low Temperature Carbon Steel | ASTM A350 | LF2 , LF3 |
| Duplex Steel Long Neck Flanges | ASTM A182, A240 | UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |
Dimension Chart of Long Weld Neck Flanges
| Outside Diameter | Inside Diameter |
|---|---|
| ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm | ≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / - 0 mm |
| Diameter of Contact Face | Outside Diameter of Hub |
| 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm |
≤ 12 = + 2.4 mm / - 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore | Drilling |
| Same as for Inside Diameter | Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing: ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness | Length thru Hub |
| ≤ 18 = + 3.2 mm / - 0 | ≥ 20 = + 4.8 mm / - 0 | ≤ 18 = + 3.2 mm / - 0.8 mm | ≥ 20 = + 4.8 mm / - 1.6 mm |
About Long Weld Neck Flanges
Long Weld Neck Flanges merchandise unit used for associating and connecting pipes, pumps, valves, and much different instrumentality to create a piping system below the dimensions of 2 or four inches in diameter. All Long weld neck flanges may be equipped with grooves, back faces, bevels, and bores decorated with a range of alloys. this is often allotted to rigorous business standards by extremely qualified welders and full certification is offered. Long Weld Neck Flanges merchandise ar chiefly designed to regulate and facilitate the flow of liquids, gases, or alternative materials. Moreover, we tend to serve our customers with Fabrication and Rubber Lining issue consistent with our purchaser’s demand.
Long Weld Neck Flanges Application and Uses
- Long Weld Neck Flanges Uses in Textile machinery
- Long Weld Neck Flanges Uses in Oil and gas industry
- Long Weld Neck Flanges Uses in Medical Gas Pipeline Systems
- Long Weld Neck Flanges Uses in Pharmaceutical processing industry
- Long Weld Neck Flanges Uses in Fluid piping.
- Long Weld Neck Flanges Uses in Modern architecture.
- Long Weld Neck Flanges Uses in Water waste projects.
