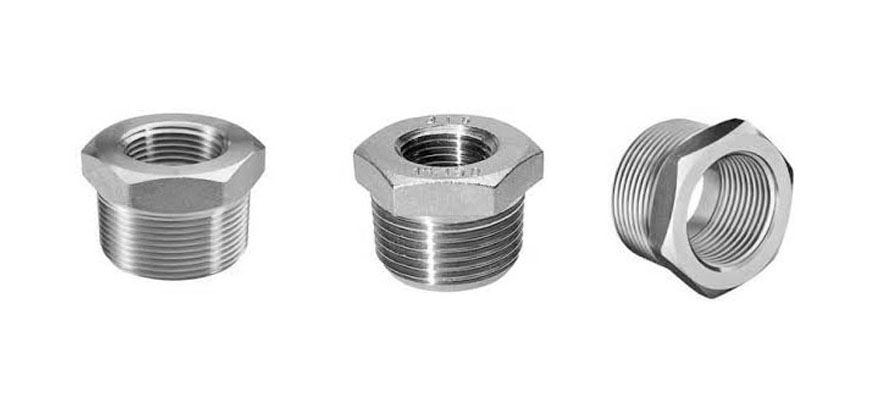

Forged Bushing Fittings

Forged Bushing Fittings

Forged Bushing Fittings Manufacturer, Supplier & Stockist in India

Bhadra Engimech is a top-most Forged Bushing Fittings Manufacturer in India. We supply and export Forged Bushing Fittings in different grades, sizes, and dimensions. Forged Bushing Fittings are used to connect pipes of different sizes. They are usually threaded on both the inside and outside, allowing them to be screwed into a larger pipe and accept a smaller pipe.

As a leading Forged Bushing Fittings Supplier, we adhere to the highest standards of precision and quality. Our Forged Bushings are suitable for high pressure systems in chemical processing, oil & gas, plumbing, and other challenging industrial settings.

Technical Specifications

Forged Bushing Fittings Specifications

Forged Bushing Fittings	Specifications
Size:	1/2″NB TO 4″NB IN
Class:	3000 LBS, 6000 LBS, 9000 LBS
Type:	Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form:	Bushing, Hex Bushing
Grades
Stainless Steel	ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Super Duplex Steel	S32750
Duplex Steel	ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon Steel	ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
Alloys Steel	ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Nickel Alloys	Nickel Alloys 200, Nickel Alloys 201
Titanium	Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Hastelloy	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Molybdenum	ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum
Cobalt	Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21
Niobium	ASTM B394, R04200 R04210
Nimonic	Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc
Tungsten	W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten
Nichrome	Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc
Magnesium	Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.
Tantalum	Tantalum – Grade 1.
Monel	Monel 400, Monel k500
MU-METAL	MU-METAL
Zirconium	Zirconium 702, Zirconium 705, Zirconium 705, Zirconium-2, Zirconium-4
Beryllium Copper	Alloy 25 UNSC17200
Aluminium	1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175
Copper Alloys	C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000

Forged Bushing Fittings Dimension Chart

DIMENSIONS OF THREADED BUSHING (BS 3799) (In mm)
Nominal Pipe Size	Length (Minimim) A
		Hex Plugs & Bushings
		Width Flats (Nominal) F	Hex Height (Min.)
		Width Flats (Nominal) F	Bushing G	Plug H
1/8”	9.7	11.2	–	6.4
1/4”	11.2	15.7	3.0	6.4
3/8”	12.7	17.5	4.1	7.9
1/2”	14.2	22.4	4.8	7.9
3/4”	15.7	26.9	5.6	9.7
1”	19.1	35.1	6.4	9.7
1-1/4”	20.6	44.5	7.1	14.2
1-1/2”	20.6	50.8	7.9	15.7
2”	22.4	63.5	8.6	17.5
2-2/2”	26.9	76.2	9.7	19.1
3”	28.4	88.9	10.4	20.6
4”	31.8	117.3	12.7	25.4

Forged Bushing Fittings Application and Uses

Bushing Fittings Uses in Textile machinery
Bushing Fittings Uses in Oil and gas industry
Bushing Fittings Uses in Medical Gas Pipeline Systems
Bushing Fittings Uses in Pharmaceutical processing industry
Bushing Fittings Uses in Fluid piping.
Bushing Fittings Uses in Modern architecture.
Bushing Fittings Uses in Water waste projects.
