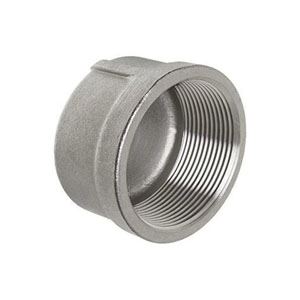

We are the world's topmost Pipe Fitting End Cap manufacturer in India. Pipe Fitting End Caps products are mainly designed to control and help the flow of liquids, gases, or other materials. Moreover, we serve our customers with Fabrication and Rubber Lining options according to our Clients' demands.
We also supply different types of Pipe Fittings products like Pipe Fitting Coupling, Pipe Fitting Stub End Lap Joint, and many more.
Pipe Fitting End Caps Specification
| Pipe Fitting End Cap |
Specifications |
| Dimension |
ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43 |
| Size |
1/2″NB TO 48″NB IN |
| Thickness |
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type |
Seamless / ERW / Welded / Fabricated |
| Form |
End Caps |
Pipe Fitting End Caps Dimension Chart
| Nominal Pipe Size |
Outside Diameter at Bevel (mm) |
Length E (mm) |
Limit Wall Thickness (mm) |
| 1/2″ | 21.3 | 25 | 4.57 |
| 3/4″ | 26.7 | 25 | 3.81 |
| 1″ | 33.4 | 38 | 4.57 |
| 1-1/4″ | 42.2 | 38 | 4.83 |
| 1-1/2″ | 48.3 | 38 | 5.08 |
| 2″ | 60.3 | 38 | 5.59 |
| 2-1/2″ | 73.0 | 38 | 7.11 |
| 3″ | 88.9 | 51 | 7.62 |
| 3-1/2″ | 101.6 | 64 | 8.13 |
| 4″ | 114.3 | 64 | 8.64 |
| 5″ | 141.3 | 76 | 9.65 |
| 6″ | 168.3 | 89 | 10.92 |
| 8″ | 219.1 | 102 | 12.70 |
| 10″ | 273.0 | 127 | 12.70 |
| 12″ | 323.8 | 152 | 12.70 |
| 14″ | 355.6 | 165 | 12.70 |
| 16″ | 406.4 | 178 | 12.70 |
| 18″ | 457.0 | 203 | 12.70 |
| 20″ | 508.0 | 229 | 12.70 |
| 22″ | 559.0 | 254 | 12.70 |
| 24″ | 610.0 | 267 | 12.70 |
Pipe Fitting End Cap Application and Uses
- End Cap Fittings Uses in Textile machinery
- End Cap Fittings Uses in Oil and gas industry
- End Cap Fittings Uses in Medical Gas Pipeline Systems
- End Cap Fittings Uses in Pharmaceutical processing industry
- End Cap Fittings Uses in Fluid piping.
- End Cap Fittings Uses in Modern architecture.
- End Cap Fittings Uses in Water waste projects.
